Description
Corner weld trimming with the correct head
Compare V-, T- and O-type trimming layouts by the real corner geometry and the required edge contact. A head letter identifies a configuration; it does not by itself guarantee suitability for every inside or outside corner.
| What matters on site | Practical value |
|---|---|
| Check access at the corner | Compare the actual joint shape with the blade and tool body. |
| Confirm the cutting geometry | Choose by the edge contact needed for the weld and surrounding material. |
| Trial before visible work | Validate the tool on a matching joint before finishing the installed flooring. |
Check access at the corner
Compare the actual joint shape with the blade and tool body.
Confirm the cutting geometry
Choose by the edge contact needed for the weld and surrounding material.
Trial before visible work
Validate the tool on a matching joint before finishing the installed flooring.
Key specifications and configuration
| Item | Specification |
|---|---|
| Listed product length (mm) | 130 |
| Net weight (kg) | 0.125 |
Listed product length (mm):
130
Net weight (kg):
0.125
Compare the options

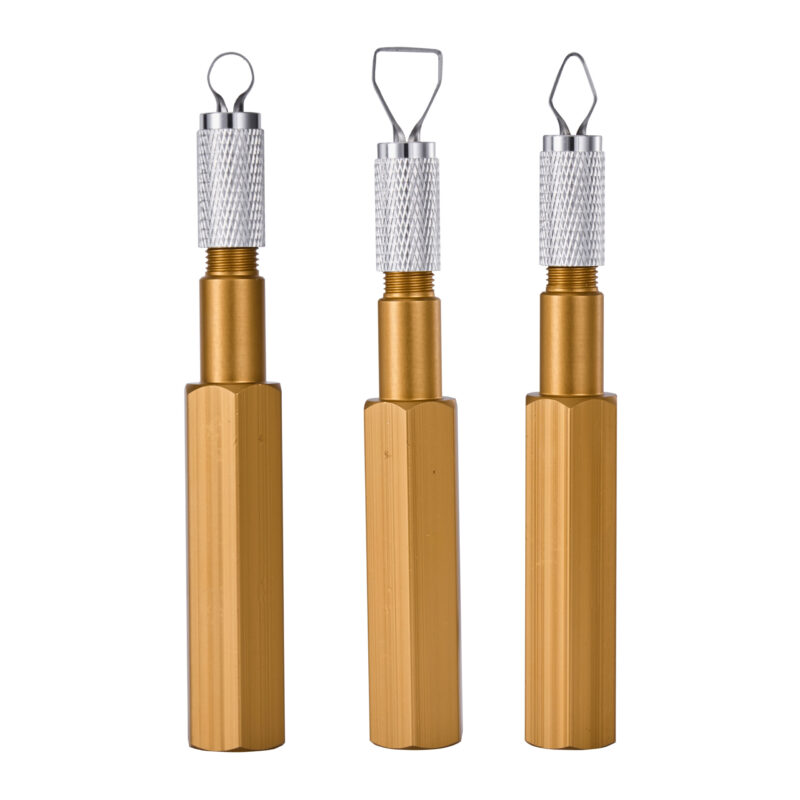

VTO Inside/Outside Corner Trimming Heads
| Configuration | Dimensions and construction |
|---|---|
| V type YYDV | Product Structure: Pictured pointed-head outline. Materials and transitions: Do not assign V exclusively to inside corners or particular materials. |
| T type YYDT | Product Structure: Pictured broader angular head; T is the model name. Materials and transitions: Do not assign T exclusively to outside corners or large-area hard materials. |
| O type YYDO | Product Structure: Pictured smaller ring head. Materials and transitions: Do not assign O exclusively to soft materials or arbitrary curvature. |
| Configuration | Application and value | Selection checks |
|---|---|---|
| V type YYDV | Pointed trial-trimming option for narrowing spaces and corner residue. Pointed contact differing from ring and broader heads. | A pointed shape alone cannot guarantee precision or undamaged adjacent surfaces. Trial trim the same flooring, rod, transition, and trimming stage. |
| T type YYDT | Trial-trimming option for broader residue contact surfaces and transitions. Alternative transition contact layout. | Edge unmeasured; broad appearance does not establish efficiency or working width. Record residue removal, adjacent surfaces, and profile under identical conditions. |
| O type YYDO | Ring trial-trimming option for small residue areas, transitions, or near curves. Local ring-contact option. | Ring diameter unrecorded; do not select rod from 17mm overall width. Use identical conditions; do not rank by unknown materials. |
V type YYDV
Dimensions and construction:
Product Structure: Pictured pointed-head outline.
Materials and transitions: Do not assign V exclusively to inside corners or particular materials.
Application and value:
Pointed trial-trimming option for narrowing spaces and corner residue. Pointed contact differing from ring and broader heads.
Selection checks:
A pointed shape alone cannot guarantee precision or undamaged adjacent surfaces. Trial trim the same flooring, rod, transition, and trimming stage.

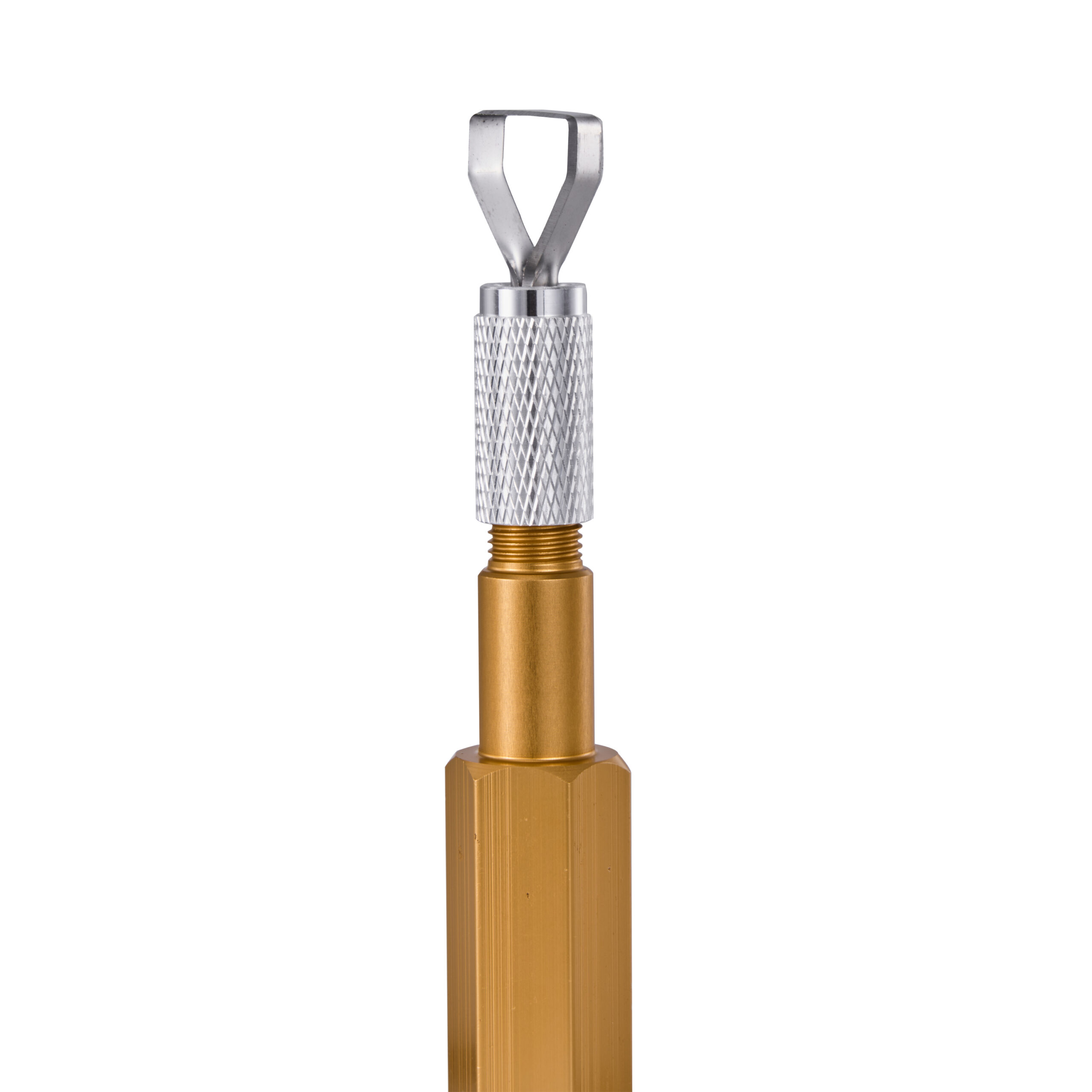

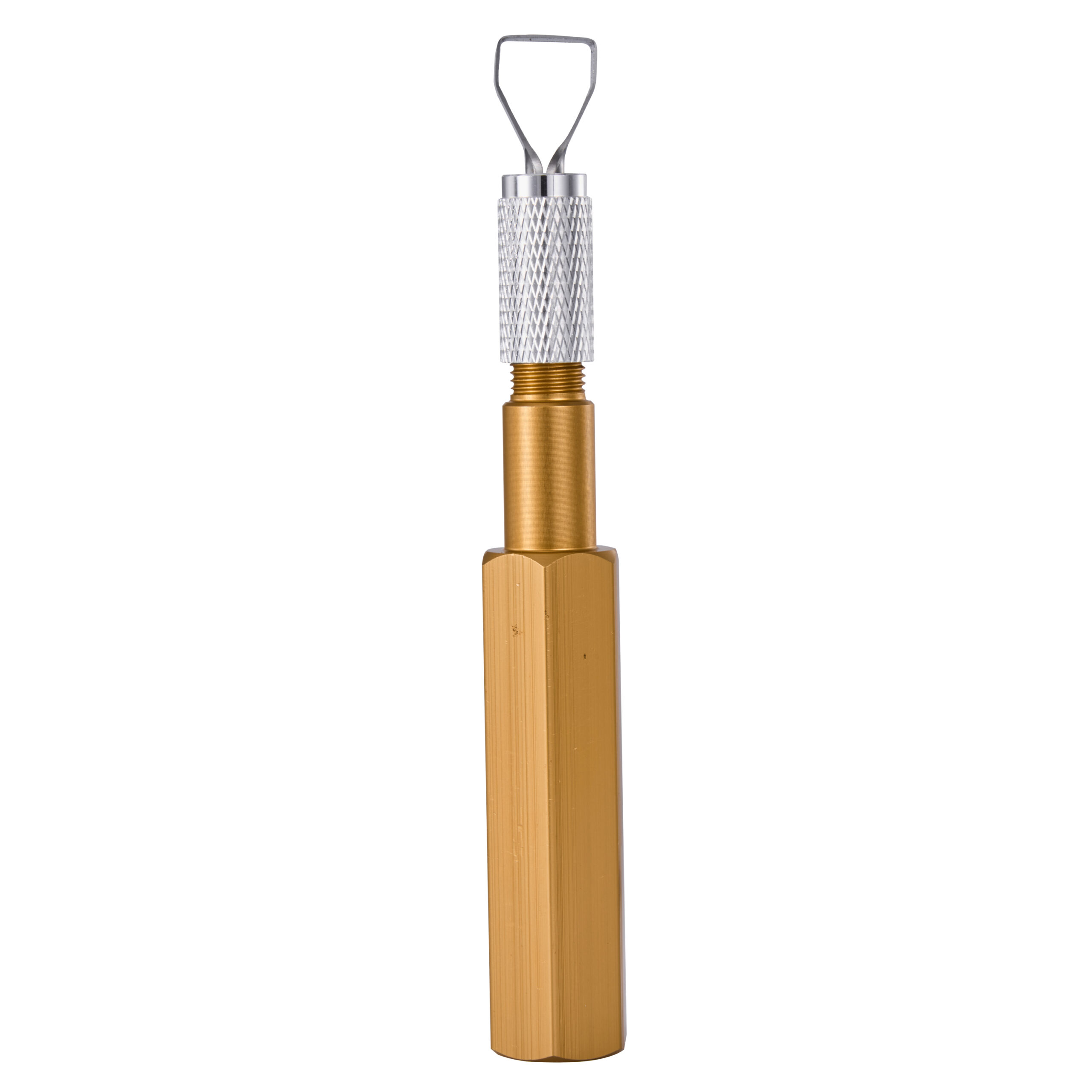

T type YYDT
Dimensions and construction:
Product Structure: Pictured broader angular head; T is the model name.
Materials and transitions: Do not assign T exclusively to outside corners or large-area hard materials.
Application and value:
Trial-trimming option for broader residue contact surfaces and transitions. Alternative transition contact layout.
Selection checks:
Edge unmeasured; broad appearance does not establish efficiency or working width. Record residue removal, adjacent surfaces, and profile under identical conditions.
O type YYDO
Dimensions and construction:
Product Structure: Pictured smaller ring head.
Materials and transitions: Do not assign O exclusively to soft materials or arbitrary curvature.
Application and value:
Ring trial-trimming option for small residue areas, transitions, or near curves. Local ring-contact option.
Selection checks:
Ring diameter unrecorded; do not select rod from 17mm overall width. Use identical conditions; do not rank by unknown materials.
Selection and use
| Step | What to check |
|---|---|
| Identify the corner | Provide the joint shape, weld position and flooring material. |
| Confirm the head | Check the selected head, blade and fastening. |
| Make a trial trim | Inspect the finished weld and adjacent surface before continuing. |
Identify the corner:
Provide the joint shape, weld position and flooring material.
Confirm the head:
Check the selected head, blade and fastening.
Make a trial trim:
Inspect the finished weld and adjacent surface before continuing.
Logo customization
The image shows the identified customization area for this product. Send the artwork and required quantity so the placement, marking method and final proof can be confirmed before production.
Frequently asked questions
Does T mean a straight transverse edge?
T is the local name; photos do not replace edge drawings. Obtain actual edge close-ups and dimensions.
Can T trim wider seams?
Effective contact width is unconfirmed. Do not promise a rated width from pictured appearance alone.
Is T specifically for cutting hard flooring?
No model-specific material-capability report exists currently. Trial trim according to material and process.
Does its weight differ from V/O?
All three product specifications state 0.125kg; no weight-version difference is established.
