Description
Tape application matched to the marking task
Choose the applicator for the tape and layout required on site. Curved-line guidance, double-sided seam-tape application and push-type marking are separate tasks; compare the tape path, clearance and substrate.
| What matters on site | Practical value |
|---|---|
| Match the tape system | Confirm tape width, core and adhesive type for the selected applicator. |
| Check the layout | Compare straight runs, curves and end clearances before starting. |
| Trial adhesion and removal | Test tape contact and removal on the actual substrate before a larger application. |
Match the tape system
Confirm tape width, core and adhesive type for the selected applicator.
Check the layout
Compare straight runs, curves and end clearances before starting.
Trial adhesion and removal
Test tape contact and removal on the actual substrate before a larger application.
Key specifications and configuration
| Item | Specification |
|---|---|
| Listed overall dimensions (l × w × h, mm) | 200 × 150 × 120 |
| Net weight (kg) | 1.2 |
| Minimum tape width (mm) | 40 |
| Maximum tape width (mm) | 50 |
Listed overall dimensions (l × w × h, mm):
200 × 150 × 120
Net weight (kg):
1.2
Minimum tape width (mm):
40
Maximum tape width (mm):
50
Compare the options
Three Line-Marking and Tape-Application Tools
| Configuration | Dimensions and construction |
|---|---|
| Dual-tape push push-type marker | Product Structure: Push-applies two masking tape strips to define masking boundaries. Dimensions / mm: 740×320×200 requires measurement. |
| Arc TDJYH7D5M | Product Structure: Centering and steel cable organize arc tape application. Dimensions / mm: 510×510×80; assembled measurement basis requires verification. |
| Double-sided tape TDJSMJ | Product Structure: Manual application of installation tape. Dimensions / mm: 200 × 150 × 120. |
| Configuration | Application and value | Selection checks |
|---|---|---|
| Dual-tape push push-type marker | Two masking-tape boundaries for coated markings in workshops or aisles. Organizes two boundaries in one push operation with standing use. | Does not spray paint; verify spacing, material, and weight versions. |
| Arc TDJYH7D5M | Evaluate arc, rounded-corner, or circular coating boundaries. Provides a repeatable geometric starting point for arc positioning. | Cable length is not radius. Tape may wrinkle; weight and packaging records conflict. |
| Double-sided tape TDJSMJ | Double-sided tape installation or localized application permitted by the material system. Explicit 40–50 mm range; manual guidance and adhesion. | Does not replace masking or welding. Suitable tape width still requires matching core and release liner. |

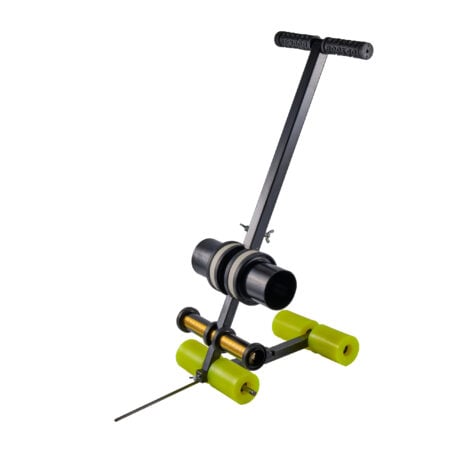

Dual-tape push push-type marker
Dimensions and construction:
Product Structure: Push-applies two masking tape strips to define masking boundaries.
Dimensions / mm: 740×320×200 requires measurement.
Application and value:
Two masking-tape boundaries for coated markings in workshops or aisles. Organizes two boundaries in one push operation with standing use.
Selection checks:
Does not spray paint; verify spacing, material, and weight versions.
Arc TDJYH7D5M
Dimensions and construction:
Product Structure: Centering and steel cable organize arc tape application.
Dimensions / mm: 510×510×80; assembled measurement basis requires verification.
Application and value:
Evaluate arc, rounded-corner, or circular coating boundaries. Provides a repeatable geometric starting point for arc positioning.
Selection checks:
Cable length is not radius. Tape may wrinkle; weight and packaging records conflict.
Double-sided tape TDJSMJ
Dimensions and construction:
Product Structure: Manual application of installation tape.
Dimensions / mm: 200 × 150 × 120.
Application and value:
Double-sided tape installation or localized application permitted by the material system. Explicit 40–50 mm range; manual guidance and adhesion.
Selection checks:
Does not replace masking or welding. Suitable tape width still requires matching core and release liner.
Selection and use
| Step | What to check |
|---|---|
| Prepare the route | Check the intended line and the clean, dry substrate required by the tape. |
| Fit and check the tape | Confirm tape path, roll fit and guide contact. |
| Trial the application | Inspect alignment and adhesion, and test removal where the finish could be marked. |
Prepare the route:
Check the intended line and the clean, dry substrate required by the tape.
Fit and check the tape:
Confirm tape path, roll fit and guide contact.
Trial the application:
Inspect alignment and adhesion, and test removal where the finish could be marked.
Logo customization
The image shows the identified customization area for this product. Send the artwork and required quantity so the placement, marking method and final proof can be confirmed before production.
Frequently asked questions
Can 80 mm tape be loaded?
The local maximum is 50 mm; website roller width is not the tape range.
Does 40 mm width guarantee compatibility?
Core, outside diameter, thickness, and release liner also require checking.
Can it replace PVC welding?
No. The flooring system determines installation or repair procedures.
Is double-sided tape included in the price?
The current table does not list tape as standard supply. Follow the quotation list.
What is a 3-inch core dimension?
Exactly 76.2 mm. The website also states 76.6 mm; actual compatibility requires measurement.
