Description

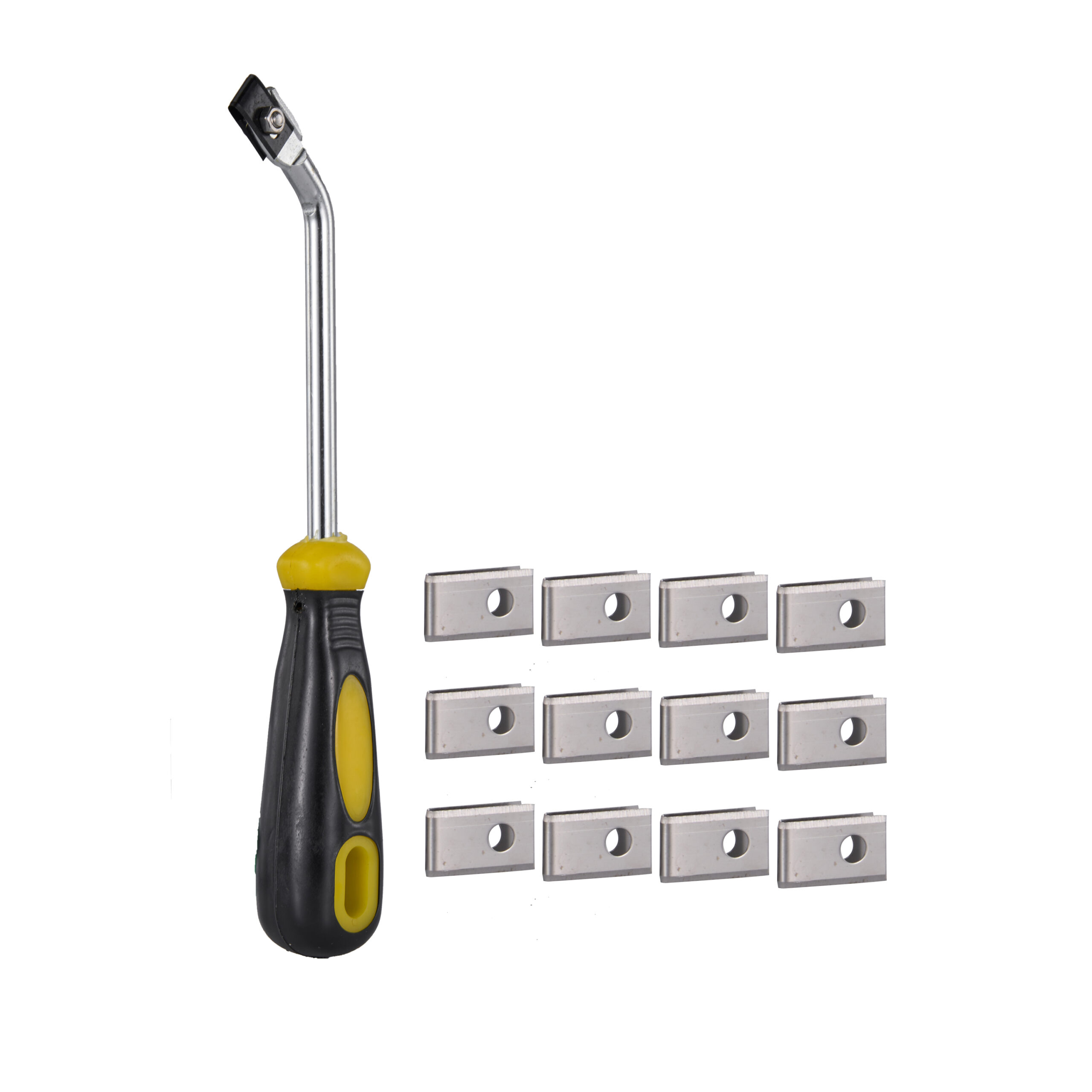

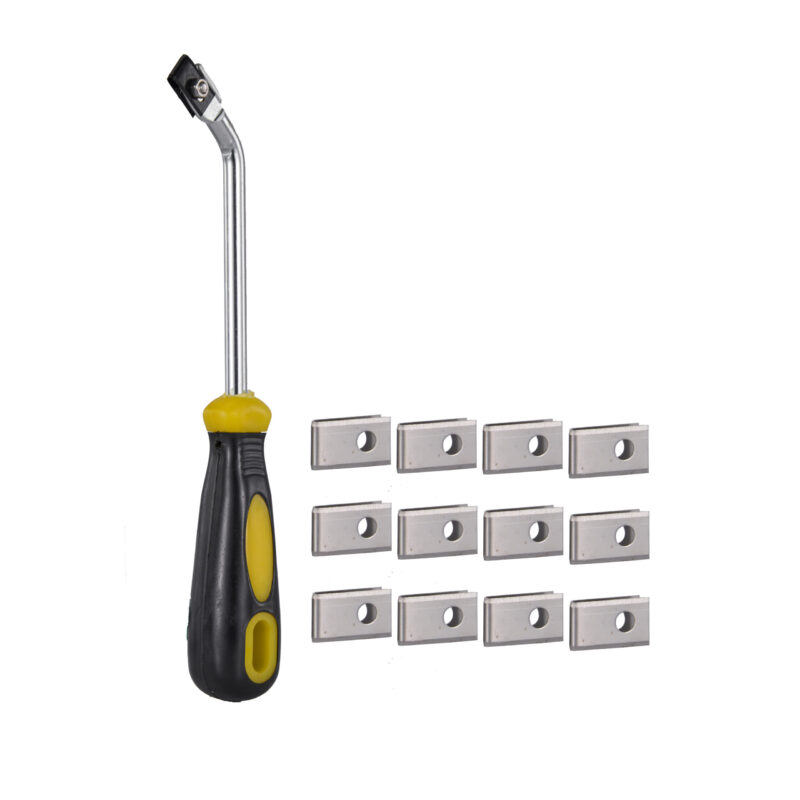

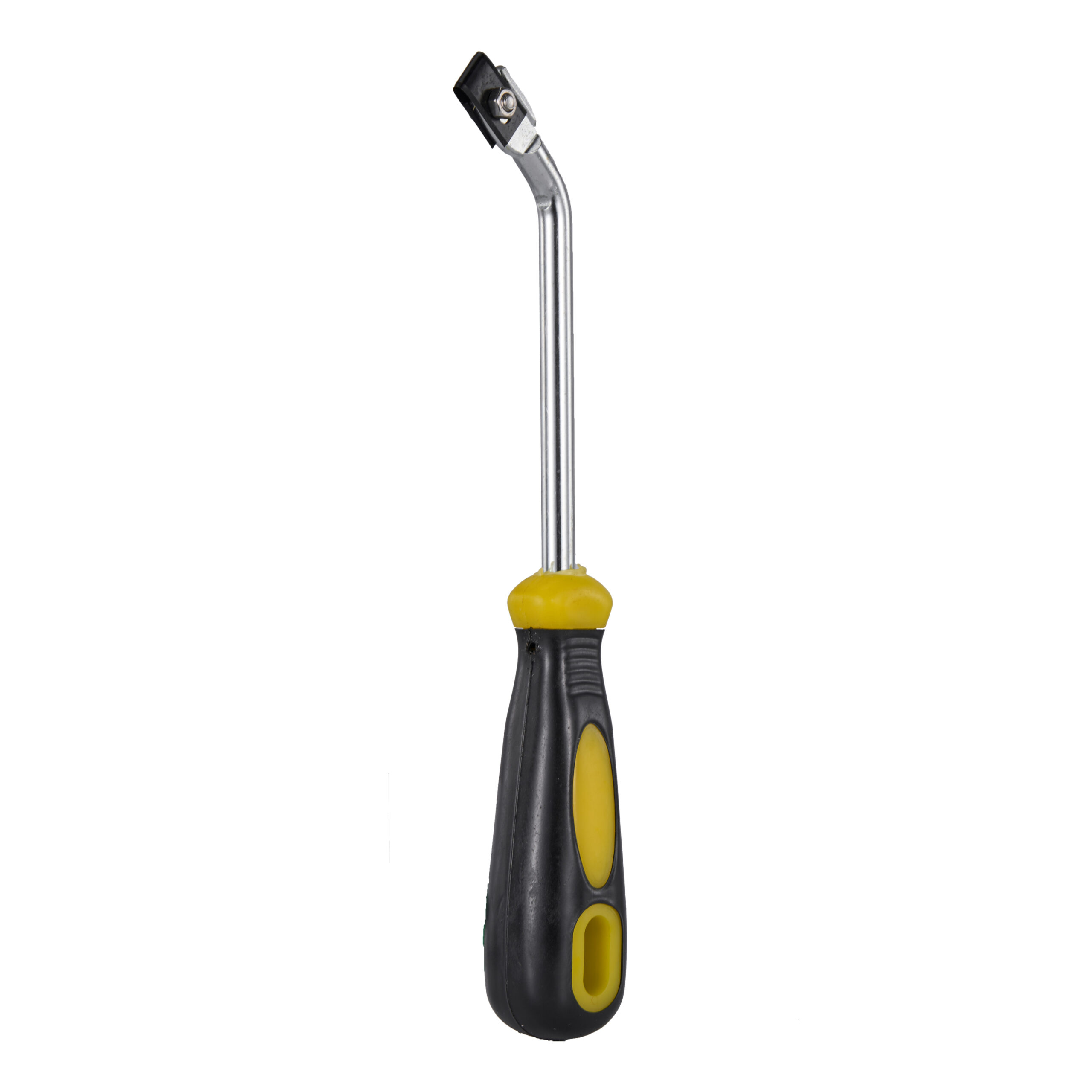

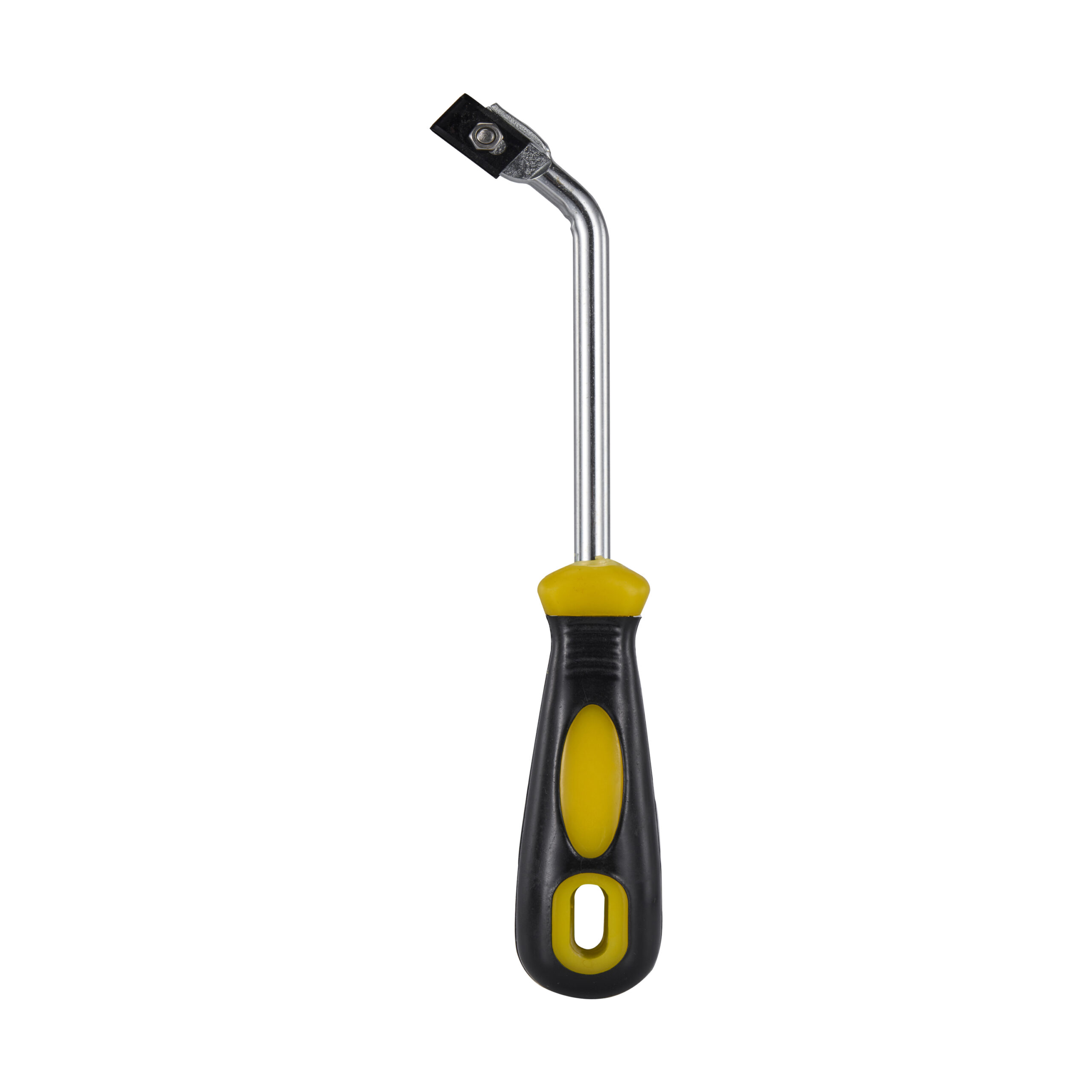

Straight-handle manual seam grooving
Use the straight-handle groover for controlled manual seam preparation. Compare the handle and fitted blade with the working position and the flooring system’s required groove profile.
| What matters on site | Practical value |
|---|---|
| Choose the grip | Wood and plastic handle versions offer different recorded size and weight combinations. |
| Confirm the fitted blade | Blade outline and mounting must match the selected tool; handle similarity does not establish interchangeability. |
| Inspect the trial groove | Judge access, control and the resulting profile on representative flooring. |
Choose the grip
Wood and plastic handle versions offer different recorded size and weight combinations.
Confirm the fitted blade
Blade outline and mounting must match the selected tool; handle similarity does not establish interchangeability.
Inspect the trial groove
Judge access, control and the resulting profile on representative flooring.
Key specifications and configuration
| Item | Specification |
|---|---|
| Listed product length (mm) | 220 |
| Blade length (mm) | 19 |
| Blade width (mm) | 12 |
| Handle material | Plastic |
| Net weight (kg) | 0.6 |
| Handle diameter (mm) | 27 |
Listed product length (mm):
220
Blade length (mm):
19
Blade width (mm):
12
Handle material:
Plastic
Net weight (kg):
0.6
Handle diameter (mm):
27
Compare the options
Manual grooving layouts and working positions
| Configuration | Dimensions and construction |
|---|---|
| 1.0 wheeled model | Product layout: Top grip and wheel frame. Net Weight: 1.2 kg. Dimensions: 205 × 83 × 90 mm. Known blade information: Blade type and groove width/depth need verification. |
| 2.0 wheeled model | Product layout: Narrow body with wheel frame. Net Weight: 0.3 kg. Dimensions: 155 × 40 × 72 mm. Known blade information: Blade type and groove width/depth need verification. |
| Wooden-handle wheeled model | Product layout: Top wooden handle and wheel frame. Net Weight: 0.6 kg. Dimensions: 160 × 55 × 110 mm. Known blade information: Blade type and groove width/depth need verification. |
| Wooden straight handle | Product layout: Straight shaft with cutting head at the end. Net Weight: 0.6 kg. Dimensions: Length 220mm, handle diameter 27mm. Known blade information: Overall blade shape 19×12mm; not groove dimensions. |
| Plastic straight handle | Product layout: Straight shaft with plastic grip. Net Weight: 0.6 kg. Dimensions: Same as the wooden straight-handle model. Known blade information: Same as left; verify compatibility separately. |
| Configuration | Application and value | Selection checks |
|---|---|---|
| 1.0 wheeled model | Manual seams with sufficient clearance. Larger tool grip option. | Heavier and wider; does not establish deeper grooving. |
| 2.0 wheeled model | Trial access in restricted areas and movement between locations. Lightest and narrowest of the three wheeled models. | Small size does not guarantee zero wall clearance. |
| Wooden-handle wheeled model | Preferred wooden-handle wheeled control. Wooden handle combined with a wheeled structure. | Taller and heavier than 2.0. |
| Wooden straight handle | Trial grooves in local positions inaccessible to a wheel frame. Evaluate straight-handle cutting-head access separately. | No wheel-frame support; does not guarantee access to every corner. |
| Plastic straight handle | Local positions with a preference for a plastic handle. Alternative handle material with shared specifications. | No lightweight advantage; cleaning resistance needs verification. |
1.0 wheeled model
Dimensions and construction:
Product layout: Top grip and wheel frame.
Net Weight: 1.2 kg.
Dimensions: 205 × 83 × 90 mm.
Known blade information: Blade type and groove width/depth need verification.
Application and value:
Manual seams with sufficient clearance. Larger tool grip option.
Selection checks:
Heavier and wider; does not establish deeper grooving.
2.0 wheeled model
Dimensions and construction:
Product layout: Narrow body with wheel frame.
Net Weight: 0.3 kg.
Dimensions: 155 × 40 × 72 mm.
Known blade information: Blade type and groove width/depth need verification.
Application and value:
Trial access in restricted areas and movement between locations. Lightest and narrowest of the three wheeled models.
Selection checks:
Small size does not guarantee zero wall clearance.
Wooden-handle wheeled model
Dimensions and construction:
Product layout: Top wooden handle and wheel frame.
Net Weight: 0.6 kg.
Dimensions: 160 × 55 × 110 mm.
Known blade information: Blade type and groove width/depth need verification.
Application and value:
Preferred wooden-handle wheeled control. Wooden handle combined with a wheeled structure.
Selection checks:
Taller and heavier than 2.0.
Wooden straight handle
Dimensions and construction:
Product layout: Straight shaft with cutting head at the end.
Net Weight: 0.6 kg.
Dimensions: Length 220mm, handle diameter 27mm.
Known blade information: Overall blade shape 19×12mm; not groove dimensions.
Application and value:
Trial grooves in local positions inaccessible to a wheel frame. Evaluate straight-handle cutting-head access separately.
Selection checks:
No wheel-frame support; does not guarantee access to every corner.
Plastic straight handle
Dimensions and construction:
Product layout: Straight shaft with plastic grip.
Net Weight: 0.6 kg.
Dimensions: Same as the wooden straight-handle model.
Known blade information: Same as left; verify compatibility separately.
Application and value:
Local positions with a preference for a plastic handle. Alternative handle material with shared specifications.
Selection checks:
No lightweight advantage; cleaning resistance needs verification.
220mm Straight-Handle Groovers, Wood and Plastic
220mm Straight-Handle Groovers, Wood and Plastic
| Configuration | Dimensions and construction |
|---|---|
| Wooden straight handle | Product Structure: Straight blade shaft, end cutting head, wooden grip. Complete tool / net weight: Length 220mm, net 0.6kg. Handle diameter / blade outline: Handle diameter 27mm; blade 19×12mm. Difference from wheeled models: No equivalent wheel-frame support; specific cutting-head control determines tracking and projection. |
| Plastic straight handle | Product Structure: Straight blade shaft, end cutting head, plastic grip. Complete tool / net weight: Length 220mm, net 0.6kg; no lower weight recorded. Handle diameter / blade outline: Same records; identical outlines do not establish blade interchangeability. Difference from wheeled models: Same as left; structure differs from 2.0 and the wooden-handle wheeled model. |
| Configuration | Application and value | Selection checks |
|---|---|---|
| Wooden straight handle | Wood, actual coating, and surface grip feel. Trial grooves pass at the target transition; wooden grip preferred. Wooden grip option; straight handle permits separate evaluation of local access. | Wood and surface care need verification; comfort and slip resistance are not guaranteed. Grip connection, blade identity, transition trial grooves, and blade quantity. |
| Plastic straight handle | Specific resin, surface, and permitted cleaning conditions. Trial grooves pass at the target transition; plastic-handle care and feel preferred. Alternative grip material with shared specifications. | Resin and cleaning resistance need verification; solvent resistance and low weight are not guaranteed. Also check resin, permitted cleaning, and surface conditions. |
Wooden straight handle
Dimensions and construction:
Product Structure: Straight blade shaft, end cutting head, wooden grip.
Complete tool / net weight: Length 220mm, net 0.6kg.
Handle diameter / blade outline: Handle diameter 27mm; blade 19×12mm.
Difference from wheeled models: No equivalent wheel-frame support; specific cutting-head control determines tracking and projection.
Application and value:
Wood, actual coating, and surface grip feel. Trial grooves pass at the target transition; wooden grip preferred. Wooden grip option; straight handle permits separate evaluation of local access.
Selection checks:
Wood and surface care need verification; comfort and slip resistance are not guaranteed. Grip connection, blade identity, transition trial grooves, and blade quantity.
Plastic straight handle
Dimensions and construction:
Product Structure: Straight blade shaft, end cutting head, plastic grip.
Complete tool / net weight: Length 220mm, net 0.6kg; no lower weight recorded.
Handle diameter / blade outline: Same records; identical outlines do not establish blade interchangeability.
Difference from wheeled models: Same as left; structure differs from 2.0 and the wooden-handle wheeled model.
Application and value:
Specific resin, surface, and permitted cleaning conditions. Trial grooves pass at the target transition; plastic-handle care and feel preferred. Alternative grip material with shared specifications.
Selection checks:
Resin and cleaning resistance need verification; solvent resistance and low weight are not guaranteed. Also check resin, permitted cleaning, and surface conditions.
Selection and use
| Step | What to check |
|---|---|
| Check the seam requirement | Confirm required groove position and profile. |
| Inspect the cutting edge | Check the blade mounting and condition before use. |
| Guide and assess | Make a controlled trial groove and inspect depth and edge condition before continuing. |
Check the seam requirement:
Confirm required groove position and profile.

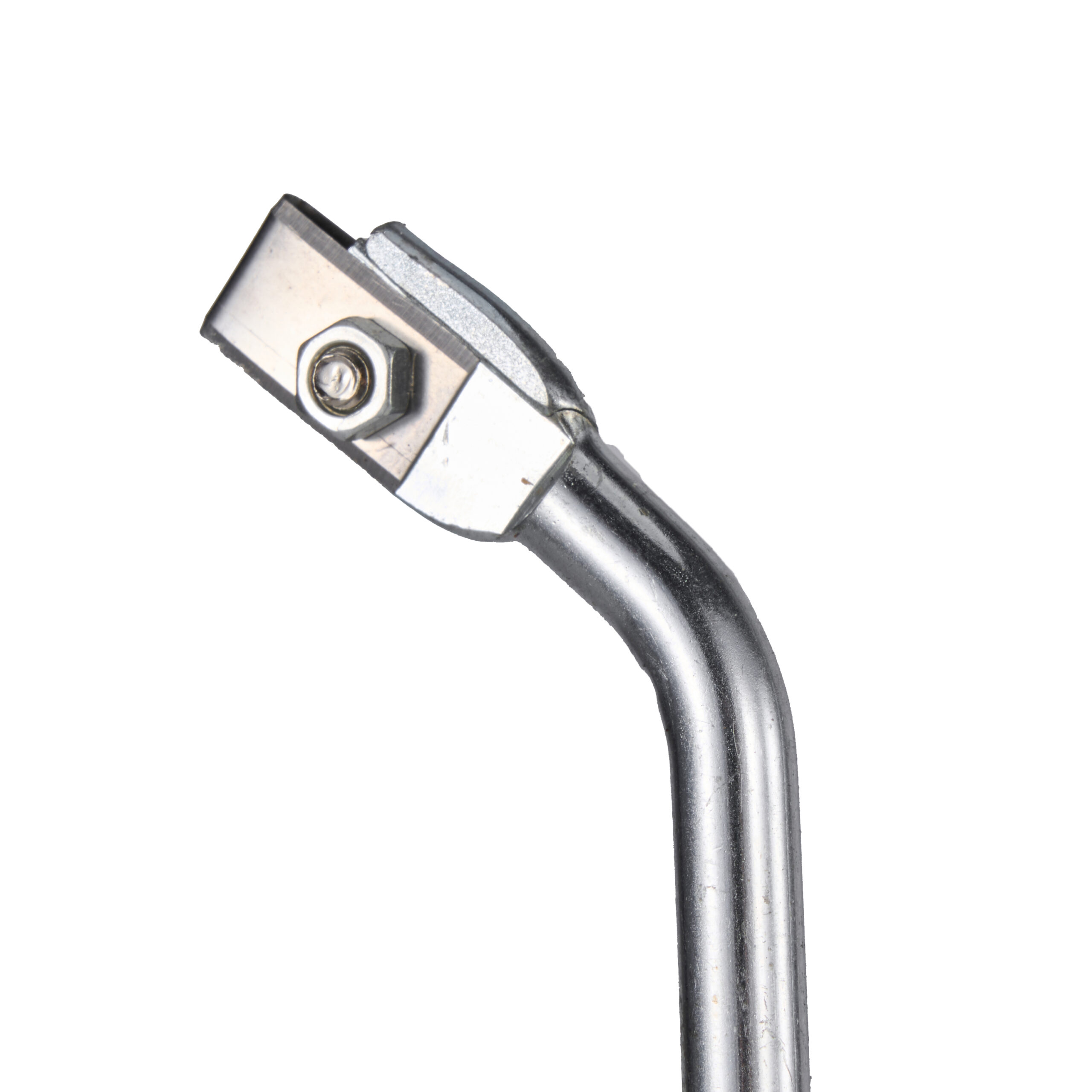

Inspect the cutting edge:
Check the blade mounting and condition before use.
Guide and assess:
Make a controlled trial groove and inspect depth and edge condition before continuing.
Logo customization
The image shows the identified customization area for this product. Send the artwork and required quantity so the placement, marking method and final proof can be confirmed before production.
Frequently asked questions
Is the plastic handle lighter than wood?
Both existing product specifications state 0.6kg. Do not retain the old webpage's lighter-weight comparison.
Can solvent remove adhesive from it?
Confirm the specific resin and permitted cleaning method. Existing information does not support universal solvent resistance.
Is 12mm the groove width?
No. It records blade outline width. Actual groove width depends on the cutting edge and operating condition.
Are plastic-handle and wooden-handle blades interchangeable?
Identical outline dimensions are only a starting point. Evidence of matching hole positions, mounting, and cutting edge is also required.
