Description
Trimming at seams, edges and coving
Choose the trimming layout for the actual working position. A flat seam, a wall edge and a coving transition require different guiding clearance and blade contact.
| What matters on site | Practical value |
|---|---|
| Start with the working position | Confirm whether the cut is on a flat seam, near the wall or at a coving transition. |
| Check the guide and blade | Guide contact and blade projection need to suit the material and cut. |
| Protect the finished surface | Use a trial cut to assess access and the risk of marking adjacent material. |
Start with the working position
Confirm whether the cut is on a flat seam, near the wall or at a coving transition.
Check the guide and blade
Guide contact and blade projection need to suit the material and cut.
Protect the finished surface
Use a trial cut to assess access and the risk of marking adjacent material.
Key specifications and configuration
| Item | Specification |
|---|---|
| Listed overall dimensions (l × w × h, mm) | 122 × 90 × 105 |
| Net weight (kg) | 0.6 |
Listed overall dimensions (l × w × h, mm):
122 × 90 × 105
Net weight (kg):
0.6
Compare the options
Seam, Wall-Edge, and Wall-Coving Trimming Tools
| Configuration | Dimensions and construction |
|---|---|
| PFD Seam Trimmer | Complete-Tool Dimensions: 126×100×106mm Net Weight: 0.798kg |
| QBTD Wall-Edge Push Trimmer | Complete-Tool Dimensions: 122×90×105mm Net Weight: 0.6kg |
| SQCBQ Wall-Coving Trimmer | Complete-Tool Dimensions: 250×230×80mm Net Weight: 0.798kg |
| Configuration | Application and value | Selection checks |
|---|---|---|
| PFD Seam Trimmer | Edge trimming before joining flexible sheets and cut-line preparation for localized sheet replacement. Establish separate control and acceptance for seam cutting. | The website excludes direct application to thick foam layers or sports flooring; the tool does not weld. Cut line, edges, adjustment retention, and blade quantity. |
| QBTD Wall-Edge Push Trimmer | Flexible-sheet wall-edge trimming and continuous trimming assessment along straight wall sections. Establish a working reference along the floor edge beside a wall. | Wall irregularities affect the reference; check doorframe and corner access separately. Wall-edge gap, bottom scratches, and corner and endpoint access. |
| SQCBQ Wall-Coving Trimmer | Sample-panel assessment for trimming coved upstands or flexible wall sheets. Establish adjustment and feed references for wall-coving trim positions. | Dimensions do not indicate maximum wall-upstand height; clarify the website's 8–20mm definition. Complete wall-coving sample panel, adjustment datum, locking, and rolling contact. |
PFD Seam Trimmer
Dimensions and construction:
Complete-Tool Dimensions: 126×100×106mm
Net Weight: 0.798kg
Application and value:
Edge trimming before joining flexible sheets and cut-line preparation for localized sheet replacement. Establish separate control and acceptance for seam cutting.
Selection checks:
The website excludes direct application to thick foam layers or sports flooring; the tool does not weld. Cut line, edges, adjustment retention, and blade quantity.

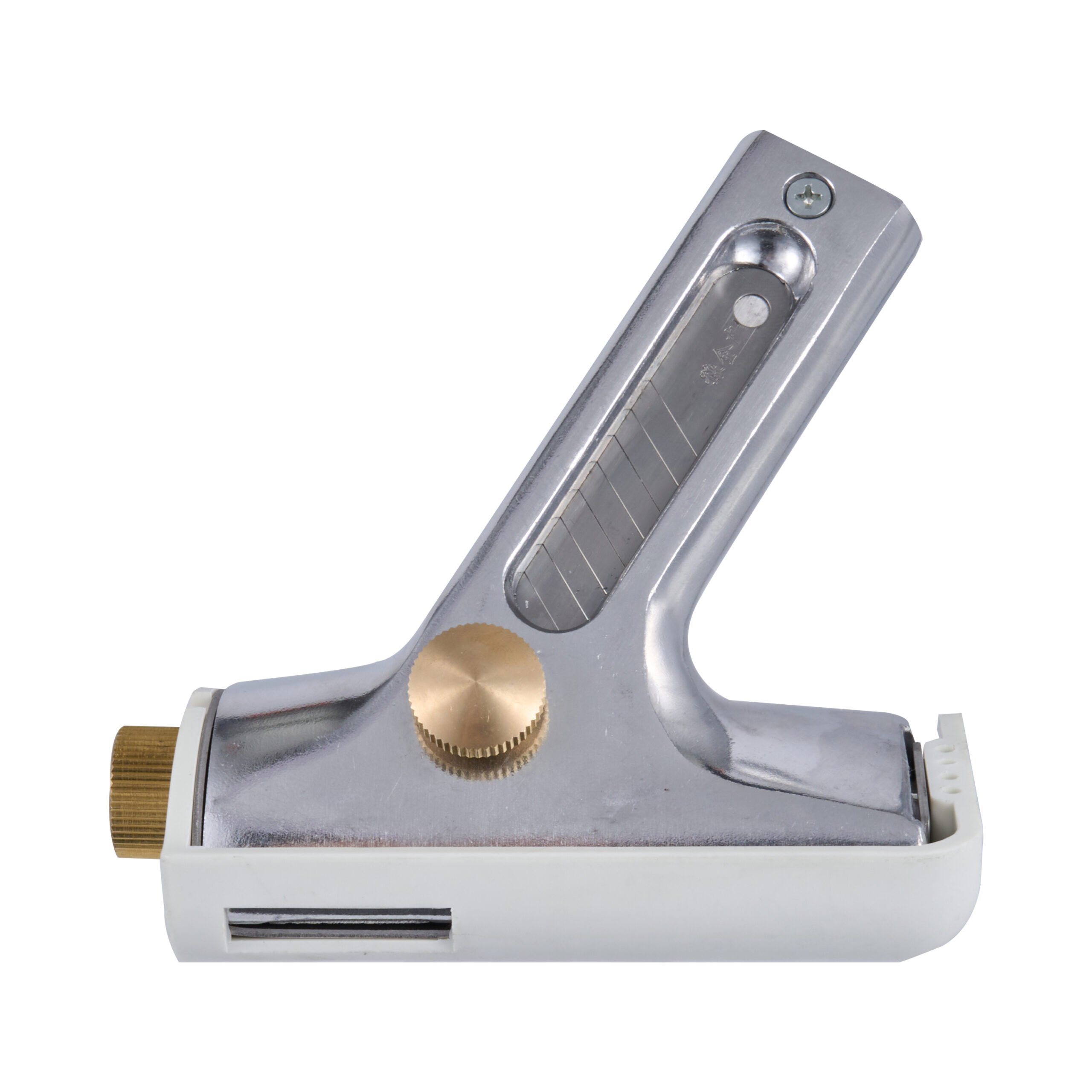

QBTD Wall-Edge Push Trimmer
Dimensions and construction:
Complete-Tool Dimensions: 122×90×105mm
Net Weight: 0.6kg
Application and value:
Flexible-sheet wall-edge trimming and continuous trimming assessment along straight wall sections. Establish a working reference along the floor edge beside a wall.
Selection checks:
Wall irregularities affect the reference; check doorframe and corner access separately. Wall-edge gap, bottom scratches, and corner and endpoint access.
SQCBQ Wall-Coving Trimmer
Dimensions and construction:
Complete-Tool Dimensions: 250×230×80mm
Net Weight: 0.798kg
Application and value:
Sample-panel assessment for trimming coved upstands or flexible wall sheets. Establish adjustment and feed references for wall-coving trim positions.
Selection checks:
Dimensions do not indicate maximum wall-upstand height; clarify the website's 8–20mm definition. Complete wall-coving sample panel, adjustment datum, locking, and rolling contact.
Selection and use
| Step | What to check |
|---|---|
| Identify the cut | Mark the required trim and check surrounding clearances. |
| Set the blade and guide | Confirm the blade, mounting and contact position. |
| Trial on matching material | Check the cut and adjacent surface before continuing. |
Identify the cut:
Mark the required trim and check surrounding clearances.
Set the blade and guide:
Confirm the blade, mounting and contact position.
Trial on matching material:
Check the cut and adjacent surface before continuing.
Logo customization
The image shows the identified customization area for this product. Send the artwork and required quantity so the placement, marking method and final proof can be confirmed before production.
Frequently asked questions
Does It Automatically Trim Flooring to a Perfect Wall Fit?
That cannot be guaranteed. Wall condition, guiding, material, and required gap all affect results.
How Does It Differ from a Wall-Coving Trimmer?
This model primarily cuts along floor-level wall edges; a wall-coving trimmer addresses trim height and position on sheets extending up walls.
What Is the Adjustable Depth?
The website describes adjustment, but the product specifications gives no range. Confirm with the corresponding sample and manual.
Can It Reach Every Corner?
Check actual blade reach; the base may limit access to doorframes and corners.
